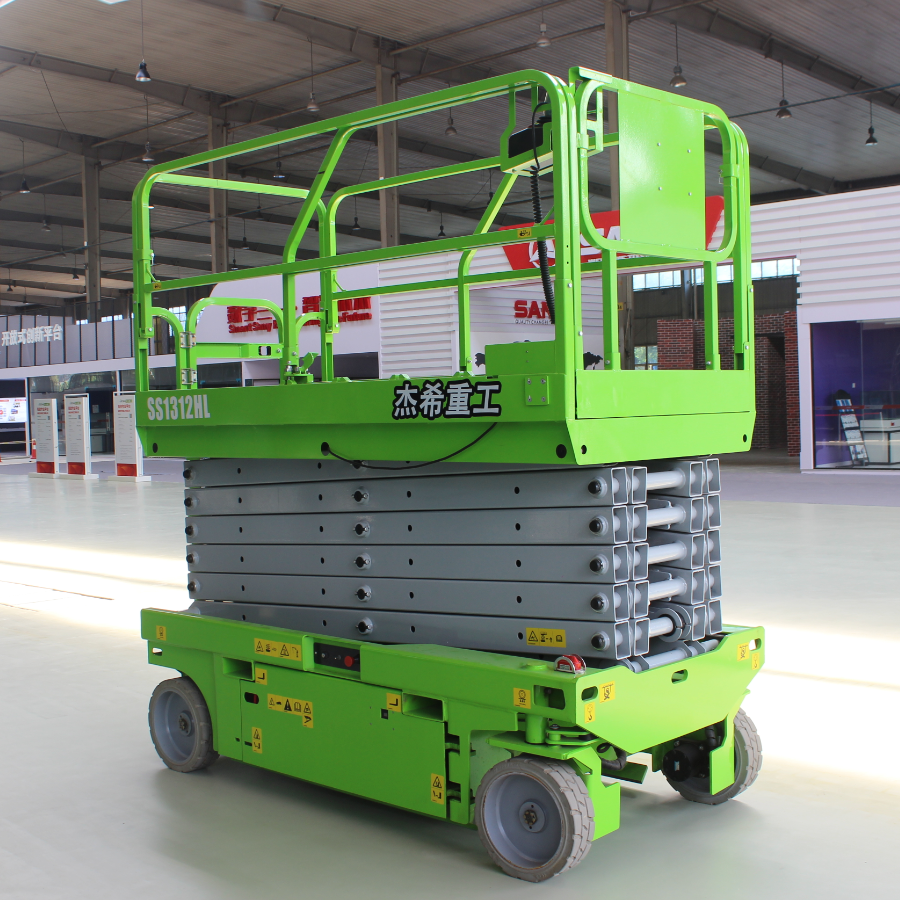

EWPs Electric Scissor Lifts With 14m working height for building

Product Categories
Hunan Jesh Heavy Industry Co.,Ltd
Contact Now

EWPs Electric Scissor Lifts With 14m working height for building

Brand Name : Jesh

Model Number : SS1312HL

Certification : CE,ISO,IPAF

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1500pcs per month

Delivery Time : 15 days

Packaging Details : standard factory package

Lift drive / actuation : electric scissor lifts

Platform extendable : 0.9m

platform width : 1.15m

Max.drive speed : 3.5km/h

Max.Working height : 14.8m

Max.Platform height : 12.8m

Platform capacity : 320kg

capacity on extension : 120kg

battery : 24v/225ah

Engine : optional for your choose : perkins, Kohler,Deutz,Commins,Yanmar

OEM,ODM : available

Contact Now

EWPs Electric Scissor Lifts With 14m working height for building

Technical parameters

Model SS1312HL
Dimentions Metric
Working Height 14.8m
Platform Height 12.8m
Platform Length 2.36m
Platform Length-Extended 3.26m
Platform Extension 0.9m
Platform Width 1.10m
Height -Unfolded 2.61m
Height-folded 2.08m
Wheelbase 1.93m
Min. Ground Clearance-stowed 10cm
Min. Ground Clearance-Raised 2cm
Productivity
Platform capacity 320kg
Extension platform capacity 120kg
Drive Speed 3.5km/h
Gradeability 25%
Raise/Lower Speed 59/45sec
Turning Radius(Inside/outside) 0/2.17m
Tire 40.5x12.7cm
Power Electric Hydraulic
Engine Optional( Pekins,Kohler,Deutz,Commins,Yanmar)
Hydraulic Oil Tank Capacity 25L
Machine Total Weight 3061kg
Bettery 24V/225Ah

Main Specs

  • Max.Working Height: 14.8m
  • Max.Platform Lifting height : 12.8m
  • S.W.L:320kg

Chassis

  • Unique design of bidirectional retracting scissor arm.
  • Slide out tray on left and right,easy for maintenance.
  • Forklift hole on side for loading and discharging.
  • Unique pothole protection design.
  • Orbital plane,easy for cleaning.
  • Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right, allowing stable turning.

Product Pictures

EWPs Electric Scissor Lifts With 14m working height for building

Factory show and customer visit

EWPs Electric Scissor Lifts With 14m working height for building

Bauma Exhibition

EWPs Electric Scissor Lifts With 14m working height for building
