Aerial work 12m load capacity 320kg Self Propelled Electric scossir lift For Rental

Name: Aerial work 12m load capacity 320kg Self Propelled Electric scossir lift For Rental
Brand: JESH
Price: 10000 USD

Quality Aerial work 12m load capacity 320kg Self Propelled Electric scossir lift For Rental wholesale

Brand Name : JESH

Model Number : SS1212EM

Certification : CE/ISO

Place of Origin : China

MOQ : 1 unit

Price : US$10000-US$18000

Payment Terms : T/T, L/C, D/A, D/P

Supply Ability : 1000 units per year

Delivery Time : 10-30days

Packaging Details : packed as per internaitonal export standard.

Feature : Self-propelled

Lift Drive/Actuation : Electric

Platform Height : 12m

Platfrom Capacity : 320kg

Power : Battery

Weight : 2467kg

Application : factory building, shipping building,airport etc.

Color : Light Green gray / as per your demand

Material : High Impact steel

Engine : optional (perkins, Kohler,Deutz,Commins,Yanmar)

OEM : OEM Surpport

Contact Now

Chassis:

Unique design of bidirectional retracting scissor arm.
Slide out tray on left and right,easy for maintenance.
Forklift hole on the front for loading and discharging.
Unique pothole protection design.
Orbital plane,easy for cleaning.
Unique design of symmetrical steering mechanism with equal turning angle and speed for left and right, allowing stable turning.

Specifications:

Model	SS1212EM
Dimentions
Working height	13.8m
Platform height	11.8m
Max drive speed	11.8m
Platform length	2.27m
Platform length-extended	3.17m
Platform extendable	0.9m
Platform width	1.14m
Height-rails unfolded	2.59m
Height-rails folded	2.06m
Width	1.14m
Length	2.47m
Wheelbase	1.87m
Ground clearance-stowed	10cm
Ground clearance-raised	2cm
Productivity
Platform capacity	320kg
Capacity on extension	120kg
Drive speed	3.2km/h
Gradeability	25%
Raise/lower speed	68/42sec
Turning radius(inside/outside)	0/2.1m
Tire	38.1x 12.9cm
Power
Battery	24V/300Ah
Hydraulic oil tank capacity	20L
Weight	2898kg

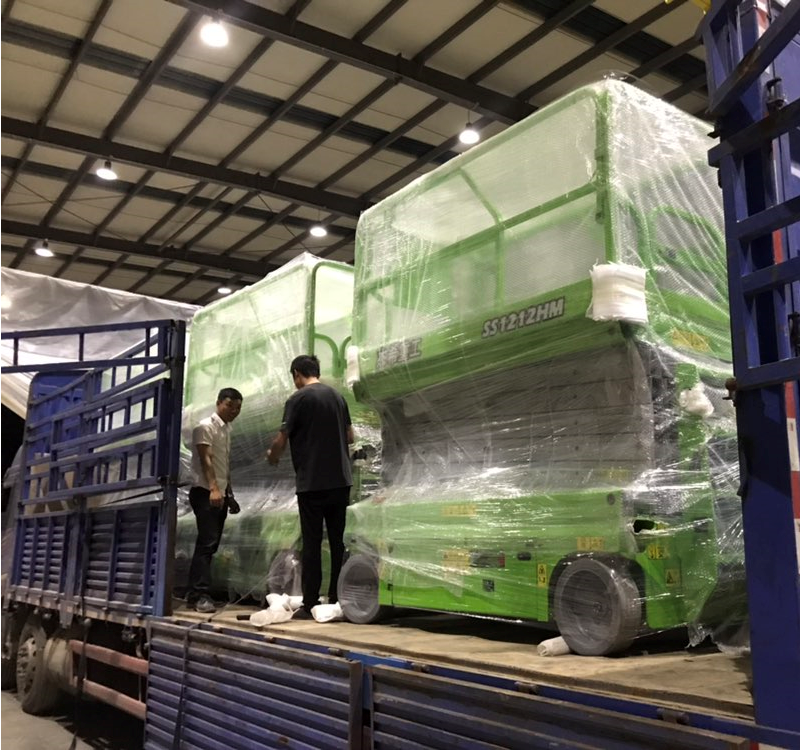

Packaging & Shipping

Jesh Standard packing,with hard plastic bag to cover the whole machine and with steel wire holds the machine foot.

Shipping by sea with around 40-45 days arrrive your destination port.

Aerial work 12m load capacity 320kg Self Propelled Electric scossir lift For Rental

Our Services

We provide long term warranty: 5 years for the main structural,2 years for the whole machine.

If we have a dealer in your local so we can make the after-sell service.If don't have,please contact us for the technical supports,we can full support you online.

electric hydraulic scissor lift

electric aerial lift

Aerial work 12m load capacity 320kg Self Propelled Electric scossir lift For Rental Images
