Brand Name : JESH
Model Number : SS0912HL
Certification : CE
Place of Origin : China
MOQ : 1Unit
Price : Negotiation
Payment Terms : T/T, L/C, D/P, D/A
Supply Ability : 4000 Units per month
Delivery Time : 60 days
Packaging Details : Regular factory packing
Color : Green
Working Height : 10.7m
Platform Height : 8.7m
Platform Length : 1.63M
Capacity : 450KG
Platform Size : 2.36*1.1m
Overall Dimensions : 2.48*1.15*2.36m
Total Weight : 2730kg
Material : High-duty Steel Structure
Control methods : 2 Controls (top+ground)
Bettery voltage : 24v/225Ah
9M scissor lift Main Specs:
Technical Parameters
| Model | SS0912HL |
| Dimentions | Metric |
| Working Height | 10.7m |
| Platform Height | 8.7m |
| Platform Length | 2.36m |
| Platform Length-Extended | 3.26m |
| Platform Extension | 0.9m |
| Platform Width | 1.1m |
| Height -Unfolded | 2.36m |
| Height-folded | 1.83m |
| Wheelbase | 1.93m |
| Min. Ground Clearance-stowed | 10cm |
| Min. Ground Clearance-Raised | 2cm |
| Productivity | |
| Platform capacity | 450kg |
| Extension platform capacity | 120kg |
| Drive Speed | 3.5km/h |
| Gradeability | 25% |
| Raise/Lower Speed | 55/42sec |
| Turning Radius(Inside/outside) | 0/2.17m |
| Tire | 40.5x12.7cm |
| Power | Hydraulic electric |
| Engine | Bettery 24V/225Ah |
| Hydraulic Oil Tank Capacity | 15L |
| Machine Total Weight | 2730kg |
| Engine | optional(perkins, Kohler,Deutz,Commins,Yanmar |

Factory Picture:

|
|

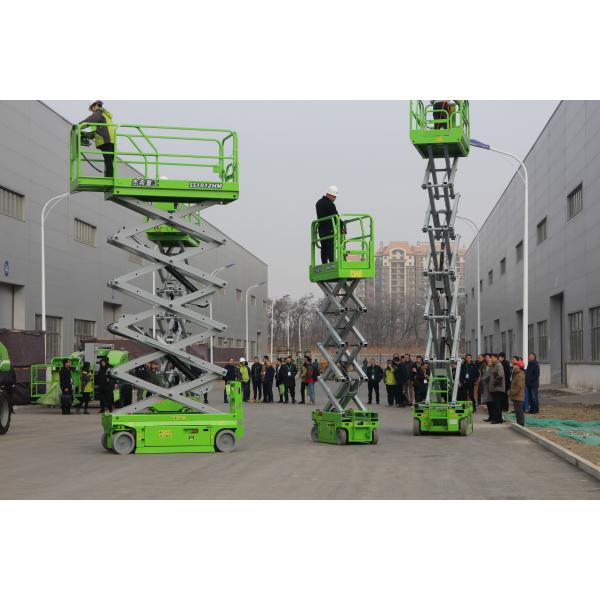

AWP EWPs hydraulic 9m 29ft 450kg capacity elevated work platform scissor lift for renting Images |
